- Alloy Or Not:Is Alloy
- Grade:3000 Series
- Surface Treatment:Coated
- Temper:O - H112
- Tolerance:±3%
- Brand Name:EB STEEL
- Width:600~1250MM
- Processing Service:Decoiling
- Processing Service:Cutting
- Processing Service:Corrugating

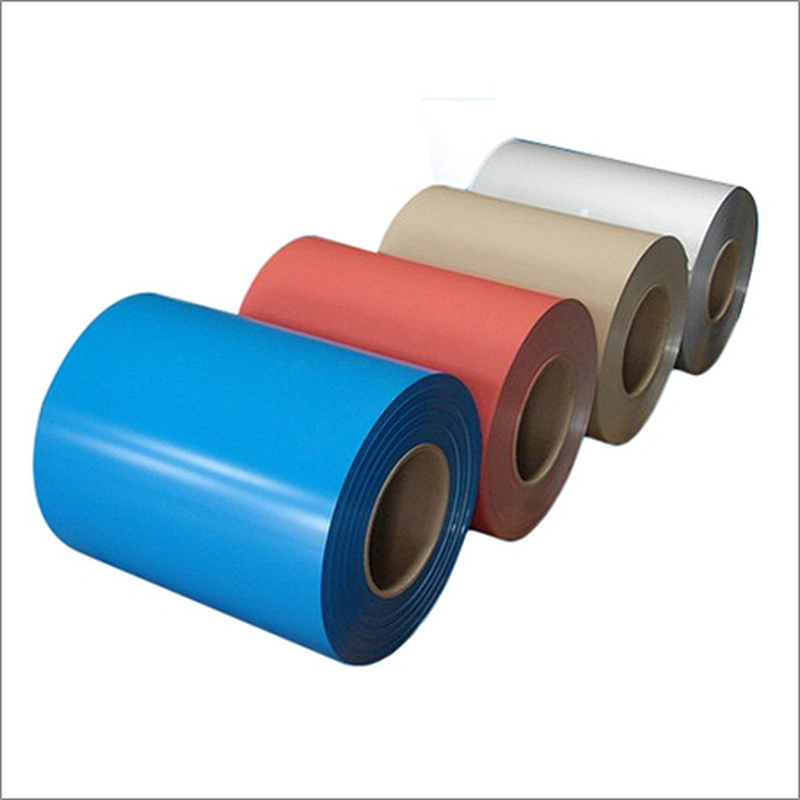

Color Coated Aluminium Coils
Pre-painted aluminium coils & sheets for roofing applications meet the most demanding construction and design requirements without making any compromise in quality. The lightness of aluminium together with its proven durability (offered through our specially developed strengthened alloys) makes it the ideal choice for creating corrugated or standing seam roofing solutions with limitless design potential, innovative colours and surface finishes.Following pre-treatment of the metal substrate, a liquid-based paint is applied to the coil ensuring homogeneity of the coating film, a process which has been proven to result in optimum colour finish and maximum durability. Polyester, polyurethane and PVDF coil coating systems are available according to customer specifications - offering a big variety of fascinating design options. Performance warranties are available upon request. Unlimited potential in designOur product has been tried and tested successfully in many projects (residential or public) with continuous length standing seam installations. It exhibits lightness and mechanical properties that are specially designed for adaptability to complex bending / forming patterns. It covers a dimension envelope wide enough to meet with most architectural requirements. Most importantly, our long expertise in coil coating technology offers many solutions which can address virtually any aesthetic or environmental architectural requirement. Our lab experts will match any colour shade in a wide variety of coating systems some of which are specially developed to increase thermal insulation ("cool roof"coatings). Last but not least, we offer stucco-embossing for several gauges in our range upon request.
Specification:
Alloy | AA1100. 3003. 3004. 3105. 5006. 5052. 3011. |
Temper | H16, H18. H24. H26. H28 |
Width | 600~1250MM |
Weight | 2~3.5T |
Coating thickness | PE:>=16 micron , PVDF:>=25 micron |
Protective film | As per customer's request |
Coating paint | PVDF, PE(Polyester), epoxy, polyamide, polyurethane |
Color | RAL or by customer requirements. |
Surface | Embossed, mill finish, coated |
Gloss | 10-100% |
Coating Hardness (pencil resistance) | More than 2H |
Coating adhesion | 1J |
Impact Resistance | No peeling or cracking(50 kg/cm) |
