- Standard:GB
- Type:Steel Coil
- Technique:Cold Rolled
- Surface Treatment:Coated
- Tolerance:±3%
- Type:Color Coated Steel Sheet
- Grade:SGCC/DX51D
- Brand Name:EB STEEL
- Width:600~1250MM
- Processing Service:Decoiling
- Processing Service:Cutting
- Processing Service:Corrugating

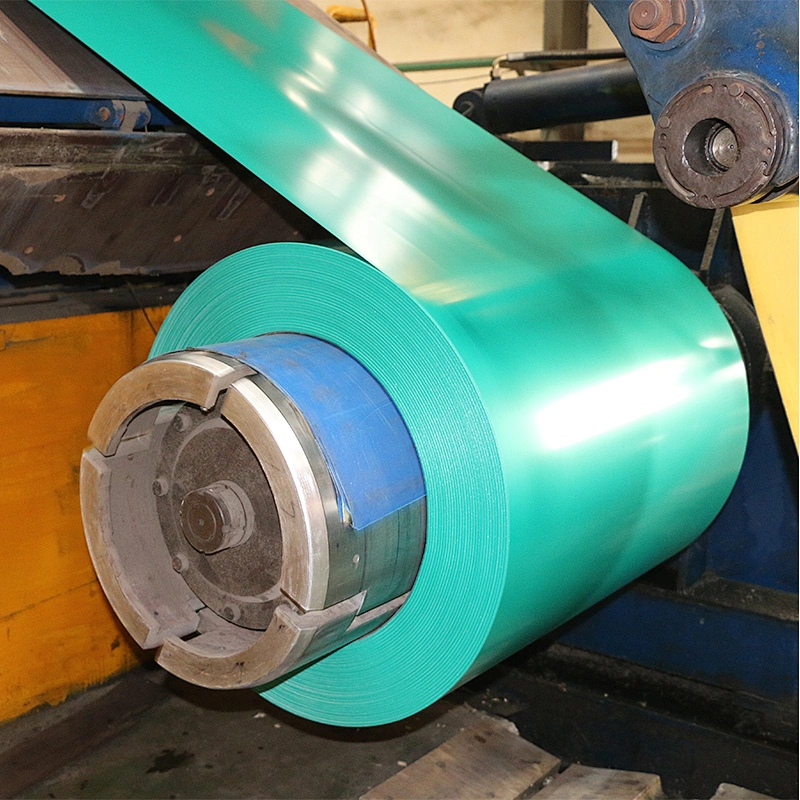

Pre-painted Steel Coils
The prepainted steel sheet in coil is a product obtained by subjecting a hot-dipped galvanized steel sheet, an galvalume steel sheet to a surface chemical treatment (coating) , followed by baking and curing.The total thickness of the pre-painted galvanized steel coil is composed of the base steel – coating -primer – top paint – protective layer thickness. The top paint thickness is 10-30μm, and the back paint thickness is 5-25μm. The thinner the base steel thickness, the higher the price of the ppgi steel coil, because the processing cost becomes higher.Usually the paint coating material is polyester (PE) and the color of the back paint is white grey. The color can be customized according to the RAL color card or customer samples. Special patterns can be made, such as wood grain, flower print, camouflage, brick.1) PPGI also known as prepainted galvanized steel coil and color coated steel coil, with a hot dip zinc coated steel sheet substrate.2) PPGL also known as prepainted galvalume steel coil, with a galvalume steel sheet as a substrate.
Specification:
Material | SGCC/DX51D |
Zinc/Aluzinc | 20~120g/m2 |
Thickness | 0.13~0.60mm |
Width | 600~1250mm |
Color | all RAL color , as client’s request |
Paint | top paint : 10-30 μm back paint: 5-25 μm |
Paints | PE, SMP, HDP, PVDF |
Pencil hardness | >2H |
Coil ID | 508/610mm |
Coil weight | 3-8tons |
Surface | glossy and matt |
Glossy | 30%-90% |
Package | waterprof paper,same color coated steel sheet covered and steel strip packed |
Hardness | soft (normal), hard, full hard(G300-G550) |
HS code | 721070100 |
Brand Name | EB STEEL |
Business type | Supplier and manufacturer |
